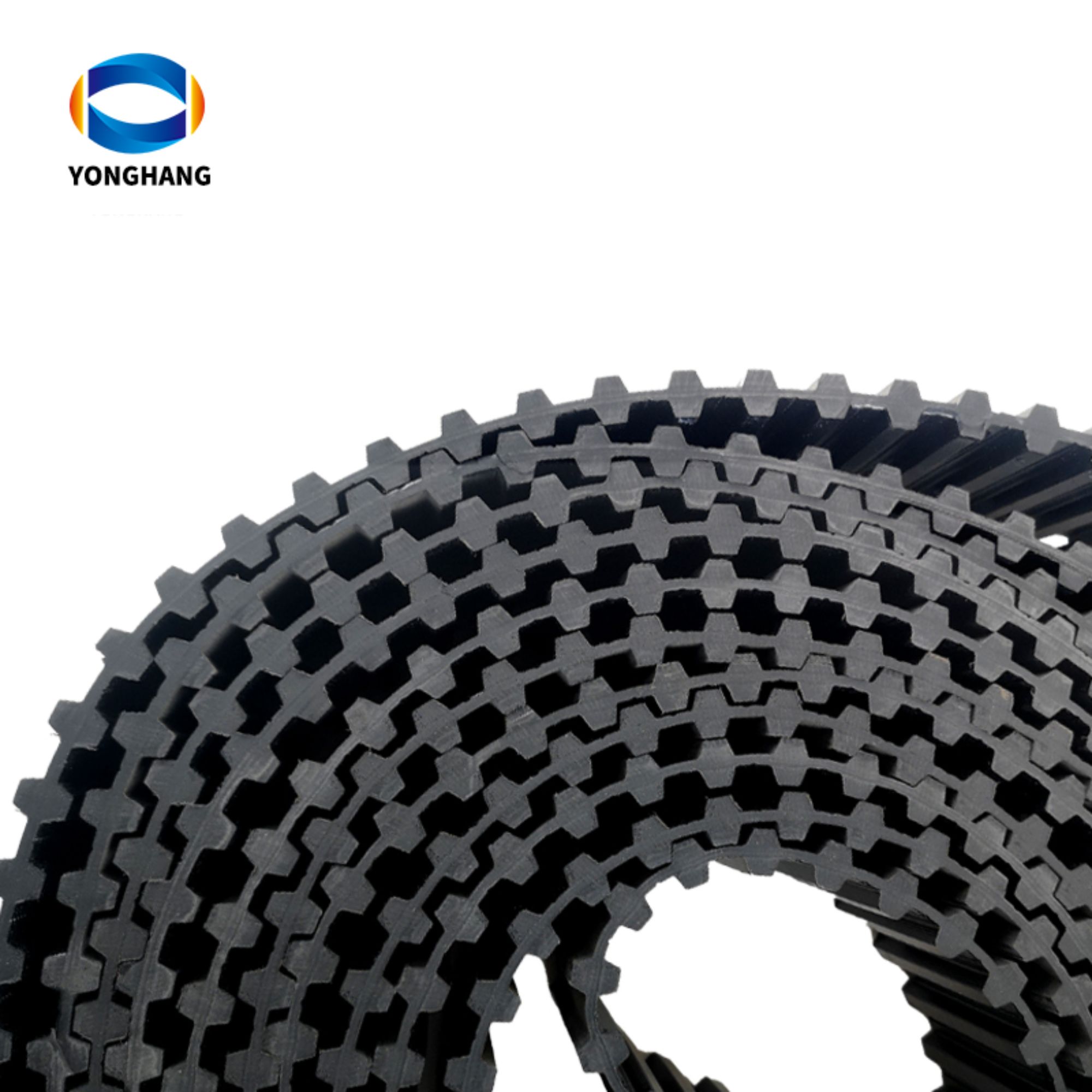

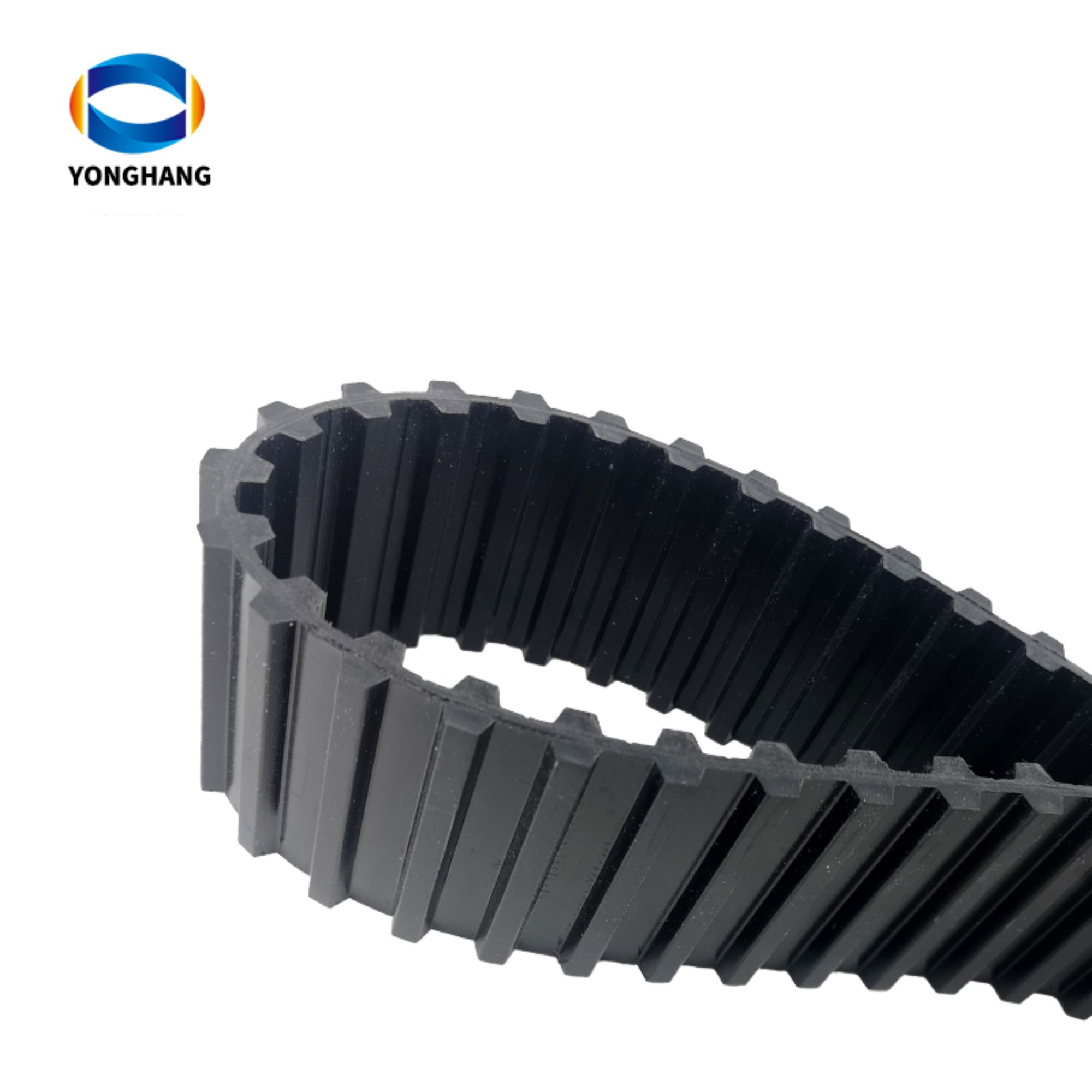

T20-DL PU Timing Belt
Double-toothed belts are used for drives with axles that rotate in opposite directions. The T20 DL PU timing belt is standard delivered with steel or kevlar cords. The T20 DL PU toothed belt has a pitch of 20mm , extremely suitable for transport where good positioning is required. We can customize the T20 DL PU toothed belt according to your wishes.Model DA Symmetrical arrangement of the two-side teeth;Model DB Staggered arrangement of the two-side teeth.
- Introduction
Introduction
T20-DL PU Timing Belt
Product details Timing belt DL T20 | |
Colour |
white/ black |
Shore hardness (A) |
90° Shore A |
Cords |
steel/ kevlar |
Width |
5-400mm |
Length |
Open length |
Endless with joint | |
Seamless (moulded) | |
Working temperature |
-20-+80C |
Standard cords |
steel 0. 9mm |
Width tollerance |
+/- 0.1 mm |
Height tollerance |
+/- 0.4 mm |
Length tollerance |
+/- 0.8 mm |
Weight per meter |
+/- 154g/10mm belt width per meter |
Minimum diameter pulley |
92.65 mm |
Minimum diameter counterbend |
120 mm |
PU timing belt DT20 - DA Symmetrical arrangement of the two-side teeth
PU timing belt DT20 - DB Staggered arrangement of the two-side teeth
PU timing belt DT20-Perforations /Grinding
PU timing belt - PAZ /NFT
PU timing belt - PAR/NFB
Available Options:
 |
 |
 |
 |
 |
 |
