HTD3M Rubber Timing Belts

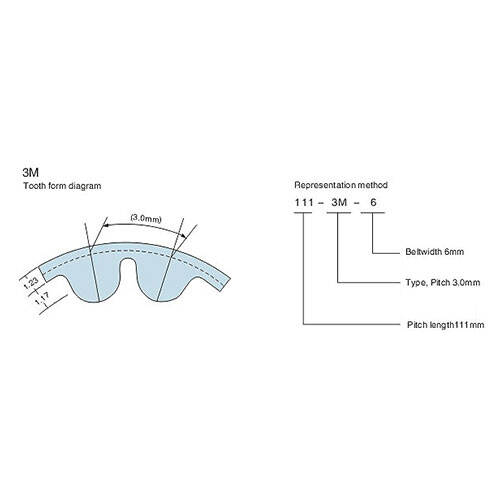

The HTD3M Rubber timing belt is standard delivered with steel or kevlar cords. The HTD3M Rubber toothed belt has a pitch of 3mm , extremely suitable for transport where good positioning is required. We can customize the HTD3M rubber toothed belt according to your wishes.
- Introduction
Introduction
|
Product details Timing belt HTD3M |
|
|
Colour |
black |
|
Shore hardness (A) |
75° Shore A |
|
Cords |
steel/ kevlar |
|
Width |
5-400mm |
|
Length |
Open length |
|
Endless with joint |
|
|
Seamless (moulded) |
|
|
Working temperature |
-20-+80C |
|
Standard cords |
steel 0.3 mm |
|
Width tollerance |
+/- 0.5 mm |
|
Height tollerance |
+/- 0.2 mm |
|
Length tollerance |
+/- 0.3 mm |
|
Weigth per 100 tooth |
8.10g |
|
Minimum diameter pulley |
17mm |
Rubber timing belt HTD3M- DA Symmetrical arrangement of the two-side teeth
Rubber timing belt HTD3M - DB Staggered arrangement of the two-side teeth
Rubber timing belt HTD3M - Perforations /Grinding
Rubber timing belt - PAZ /NFT nylon fabric on tooth side
)
